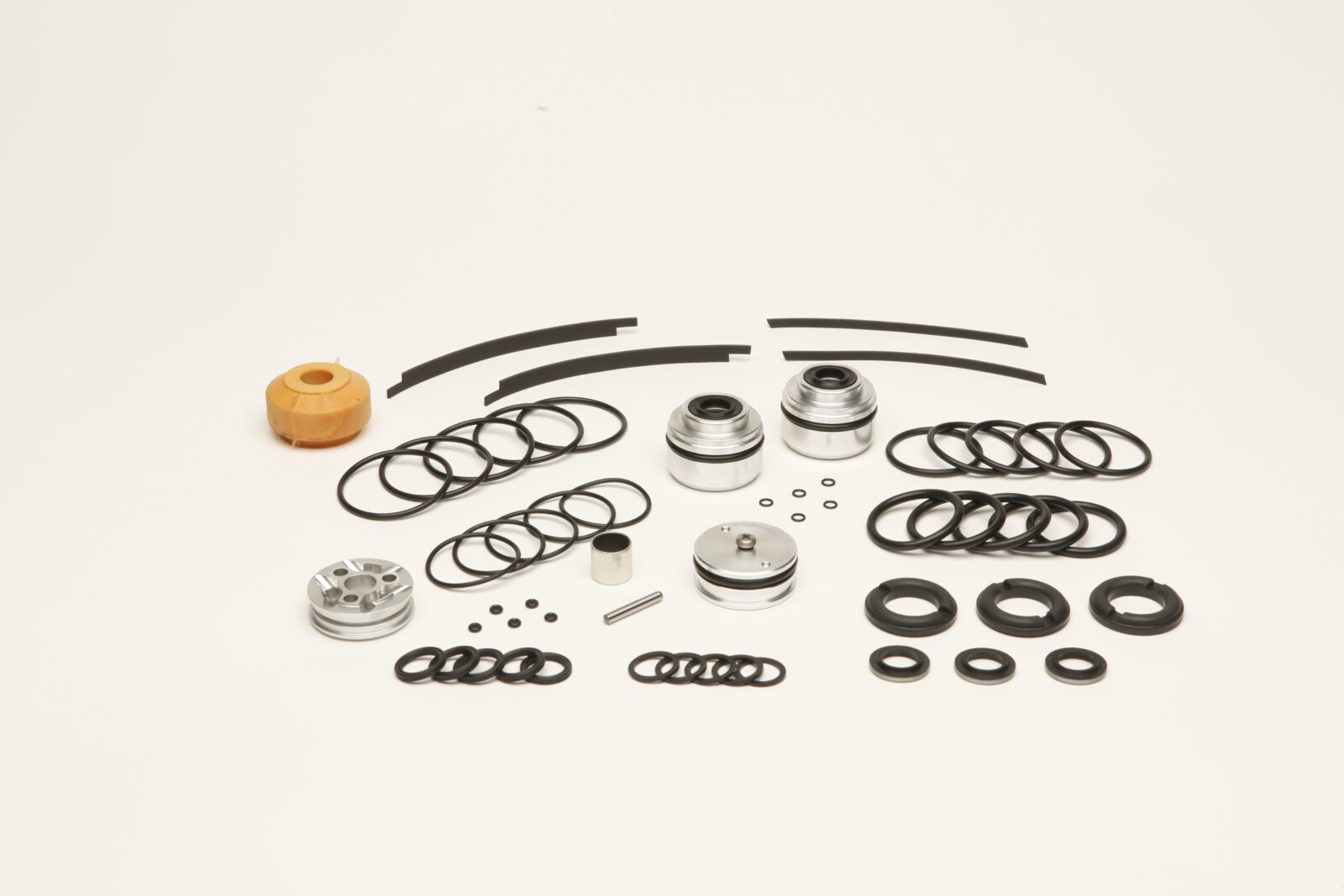

Shock repair and rebuild parts for Cogent Dynamics shocks

Shock repair and rebuild parts for Cogent Dynamics shocks

For the dedicated do-it-yourself owner or suspension service shops, we have a comprehensive array of rebuild, repair and refresh parts available for your Cogent Dynamics shock.

Compare
Compare
In stock / / . / .

Product Description

For the dedicated do-it-yourself owner or suspension service shops, we have a comprehensive array of rebuild, repair and refresh parts available for your Cogent Dynamics shock.

Contact us with your specific needs.

Seal Head Assembly
Seal Head-hp  (Assembled)$39.95
Backup Ring$1.25
Clip type seal head (bare)$20.01
Seal head bumper $4.00
Shaft scraper  $5.95
Seal head DU bushing $5.50
Seal head outer o-ring $1.45
Seal cover for dr650 oem body $16.50
Floating piston Assembly
O-ring floating piston$14.25
separator piston$1.25
bleed screw$1.30
bleed screw oring $.80
separator piston wear ring  $5.40
Cylinder head Assembly
Cylinder head$82.50
O-ring 3X18$1.20
O-ring 4X18$1.20
Spherical Bearing$16.00
12mm bore X 22 bushing$9.00
Circlip$21.10
Fill port $1.50
crush washer $16.50
M4 screw $0.75
valve rubber$0.60
0-ring (small) -007$0.40
Cylinder head to body O-Ring$1.50
Shaft
135mm integrated shaft$82.50
Bottoming bumper$16.00
135mm non-adjustable shaft$30.50
175mm dr shaft$92.80
172mm x 4mm Push rod$5.00
Stop Washer$15.00
Threaded Spring Collar adjuster$45.50
Spring clip$30.50
spring clip flange$15.00
Damper piston Assembly
Linear/Linear Piston assy$74.50
Oring, expander$1.20
Piston Ring HF width$9.00
Clevis Assembly
KLR Clevis$80.00
DR 650 clevis$80.00
Adjuster cover, rebound$15.50
Adjuster, rebound- small$30.00
Adjuster, rebound$30.00
Dowl pin$1.50
adj wheel oring$1.20
adj wheel cover oring$1.20
 needle jet$14.95
 needle$9.00
 oring, needle$0.80
m12 shaft nut$10.00
shim pack$25.00
Spring slip washer$4.00
To order please call (828) 628 9025 or email raceparts@motocd.com
